Tactical Flotation for the Tactical Warrior
A member of the Protective Engineering Concepts Group, PECI Flotation is dedicated to using state-of-the-art engineering solutions to build products geared to support today’s Tactical Warrior.
Built by Operators, For Operators, it's the globally trusted brand when it comes to preservation of life in extreme situations.
For more information on any of the PECI range of products, contact us.
PTFS
Personal Tactical Flotation System
NSN: 4220-01-524-5318
Developed by PECI Flotation L.L.C. in consultation with U.S. Special Forces, the Tactical Flotation Support System (TFSS) is an inflatable aid to flotation device specifically designed for covert war fighters, combat swimmers, and/or maritime airborne operations personnel.
The TFSS-5326 consists of one left and right hand unit, each operationally independent of the other, which are mounted on the MSS Heavy Duty Belt.
Each unit includes a welded flotation bladder, an inflation system, a pouch closure system, a pouch, and a discharge handle. The bladder is a reusable welded fabric enclosure that deploys under the arm and is readily collapsed and stowed for future use. The inflation system utilizes a manually actuated CO2 cartridge for primary inflation and an oral inflation tube for secondary inflation.
The TFSS-5326 pouch contains and protects the bladder and inflation systems. It includes a waist belt loop and clip loops to secure the pouch to the webbing belt. The discharge handle attaches to the outside of the pouch and uses colour-coded beads to help distinguish left and right hand units. The handle serves to release the closure system and actuate the CO2 inflation system.
As a secondary means of inflation, the bladder can be filled through an oral inflation tube. This is accomplished by depressing the Oralock valve, then breathing into the tube.

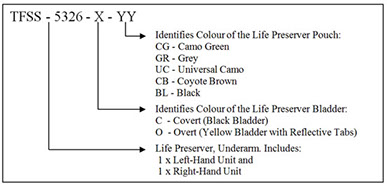

There are ten different operational colour combination currently manufactured:
- 5 colour configurations of the pouch

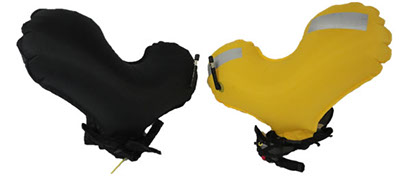

- 2 different colour configurations of the nylon bladder
| Data Summary | |
|---|---|
| Primary inflation | Manually actuated, CO2 system |
| Secondary inflation | manually operated, oral inflation system |
| Sizes | One size fits all |
| Approximate dimensions | 165 mm L x 70 mm W x 57 mm D |
| Approximate weight with full CO2 cartridge | 425 g* |
| Minimum buoyancy at surface (Ambient temperature 21°C) | |
| Per unit | 18.1 kg |
| Per system | 36.2 kg |
| System buoyancy at relative depths (Ambient temperature 21°C) | |
| 15 metres underwater | 15.9 kg of lift |
| 10 metres underwater | 20.4 kg of lift |
| 5 metres underwater | 25.9 kg of lift |
| 1 metre underwater | 36.2 kg of lift |
| Time for full inflation: | |
| Actuated in water | < 3 sec. |
| Actuated out of water | < 6 sec. |
* This approximate weight is given only to give context. It should not be relied upon as a check as to whether a full cartridge is installed in either unit. For the required inspections and packing procedures, please contact our staff.

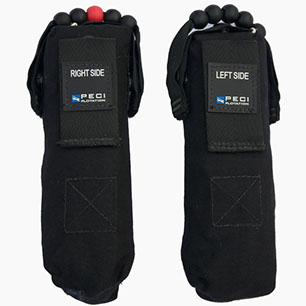

AUTO-TFSS
Automatic Tactical Flotation Support System
Part No. AUTO-TFSS
The Automatic Tactical Flotation Support System, ATFSS™, AUTO-TFSS is a low profile aid to flotation device specifically designed to automatically inflate when submerged in water. It automatically inflates in approximately six (6) seconds when totally submerged in water and has a back-up manual lanyard system in the unlikely event auto inflation does not occur. The AUTO-TFSS is ideal for small boat operations, training events and recreation.
The AUTO-TFSS was designed to provide the same buoyancy as the TFSS-5326, allowing today's war fighter a maximum load-out of equipment.
Each AUTO-TFSS system consists of one each independent left and right hand units, which can be mounted on a belt. Each unit includes a welded flotation bladder, an inflation system, a pouch closure system, a pouch, and a firing handle. The bladder is a reusable welded fabric enclosure that deploys under the arm and is readily collapsed and stowed for future use. The inflation system utilizes an auto-actuated CO2 cartridge for primary inflation, a manual pull system as a secondary inflation source and an oral inflation tube as a third inflation source.
The AUTO-TFSS pouch uses a unique nylon zipper closure system designed to separate upon inflation. This method prevents accidental pouch opening and allows for the smallest unit size when fully packed (approx 6.5" x 2.75" x 2.25"). A durable Cordura flap to further protect against damage and inadvertent actuation covers the entire closure mechanism.
The AUTO-TFSS pouch contains and protects the bladder, inflation system, and closure system. It includes a waist belt loop and clip loops to secure the pouch to the webbing belt. A firing handle attaches to the outside of each pouch and uses color-coded beads to help distinguish left and right hand units. The handle serves to release the closure system and actuate the CO2 inflation system if the auto system fails.
To manually actuate an AUTO-TFSS unit, the user pulls upward on the firing handle. This motion initiates two sequential actions. First the manual inflator lever is actuated, causing the firing pin to puncture the seal on the CO2 cartridges to release the gas and completely fill the bladder. This action then separates the nylon zipper and deploys the filled bladders. Should this CO2 inflation system fail to operate, the bladder can also be filled through an oral inflation tube. This is accomplished by depressing the Oralock valve, then breathing into the tube. Gas is released from the AUTO-TFSS bladder by pressing downward on the Oralock valve and forcing the air out the oral inflation tube. Once all of the gas is evacuated from the bladder, the CO2 cartridges are replaced, maintenance is performed, and the units are repacked for future use.
MSS
Maritime Safety System (MSS) with Tactical Rescue Belt
Part No. Bale Defence 5816
Utilizing the globally recognized Tactical Flotation Support Systems (TFSS), the Maritime Safety System (MSS) adds a new dimension of safety and survival by incorporating the already proven and accepted SEA2 auxiliary air system* and a versatile in-water survival and personal recovery kit. Included are right and left TFSS flotation devices that provide 36 kg of positive buoyancy on the surface (sea water) together with a SEA2 air system which gives the operator approximately 3 to 5 minutes of air for safe egress from an underwater crisis scenario. Additionally included is a survival pouch that includes a chemlite, sea dye marker and signal whistle.
The MSS is incorporated into a sturdy rescue/riggers belt maintained on the body until manual release. It is secured by the proven "Cobra-style" buckle system, making the individual readily available for extraction. The system has been designed for easy don and doffing with two buckles; the main buckle and the leg clasp for the MSS Bottle Pocket leg holster which is the systems interface for the SEA2 air system.
Ask our staff about the range of operational colours available for the system.
* Aqua Lung SEA2 Auxuilliary Air System not included in System; sold seperately.

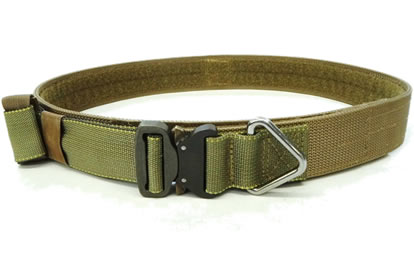

MSS Heavy Duty Belt
NSN: 8465-01-644-4782
The MSS Heavy Duty Belt is a sturdy rescue/riggers belt that integrates all components of the Maritime Safety System.
The Belt is constructed of double layered 2" heavy duty webbing and is secured by the proven "Cobra-style" buckle system. Combined with the stainless steel V-Ring, this belt makes the operator readily available for extraction.
The design of MSS Heavy Duty Belt also facilitates the rapid donning or dumping of the the assembly in emergency situation.

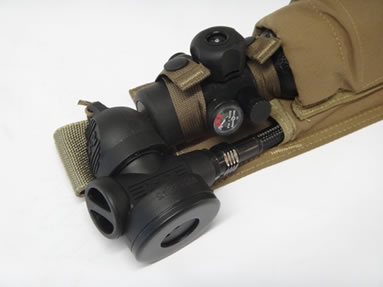

MSS Bottle Pocket
NSN: 4220-66-161-3783
The MSS Bottle Pocket is designed to integrate the proven Aqualung SEA2 auxiliary air device into the Life Preserver System. The heavy duty cordura holster is attached to the MSS Heavy Duty Belt at the top and also has provisions for a second securing strap at the bottom to loop around the leg.
The Bottle Pocket provides an unobstructive method of carrying the SEA 2 ft3 air bottle in a location that is easily accessible and operational in an emergency situation.

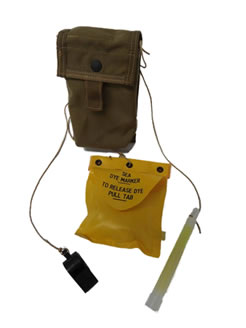

Maritime Safety Signal Kit
Part No. Bale Defence 50340
The compact Maritime Safety Signal Kit is an important part of the Life Preserver System as it integrates the tools required to aid survival and sea rescue once on the surface of the water. The kit offers safety signals for both daytime & night time rescues as well as combining visual and audible signals that will aid in any number of situations that may be encountered.
The Sea Dye Marker (IAW MIL-S-17980) is intended for use during daytime rescues. Upon release, it will leave an extensive and distinct fluoro trail on the surface of the water which will be spread by the currents and aid any aerial searches undertaken.
The Cyalume stick is a light that uses a chemical reaction when snapped to become a luminous signal. The stick is made more prominent by quickly swinging it around in a circular pattern overhead using the attached lanyard. The lights are available in a variety of colours including Infrared.
Finally, the Whistle (IAW MIL-W-1053) provides an alternative audible signal which may be useful in all conditions but particularly when visibility is poor.
MSS Heavy Duty Belt
NSN: 8465-01-644-4782
The MSS Heavy Duty Belt is a sturdy rescue/riggers belt that integrates all components of the Maritime Safety System.
The Belt is constructed of double layered 2" heavy duty webbing and is secured by the proven "Cobra-style" buckle system. Combined with the stainless steel V-Ring, this belt makes the operator readily available for extraction.
The design of MSS Heavy Duty Belt also facilitates the rapid donning or dumping of the the assembly in emergency situation.
DMFS
Detachable Modular Flotation System
Part No. DMFS

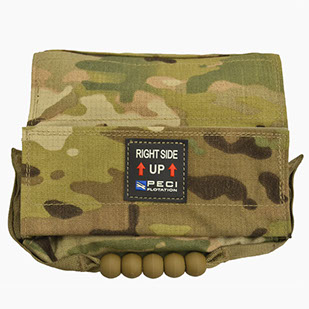

The Detachable Modular Flotation System (DMFS), designed by PECI Flotation, L.L.C and Combat Solutions, L.L.C., together with Aerial Machine & Tool Company (A Capewell Company) is an user-actuated inflatable flotation system specifically designed for waterborne and/or maritime airborne operations personnel. It can also be used with the Helicopter Aircrew Breathing Device (HABD) during egress from a submerged vessel of any type. The DMFS was designed to provide an aid to flotation while attaching to plate carrier, patrol belt or H-harness with the unique capability of quick removal by providing the capability for additional kit mounting points on the devices for a “no lost real estate” usage scenario.
Each DMFS consists of one each independent left and right hand units mounted on a carrier platform utilizing a fabric wrap-around design secured by a hook and loop system, MOLLE or ALICE attachment capabilities for ease of donning and doffing in the field. Each unit includes a welded flotation bladder, an inflation system, a pouch closure system, a pouch, and a firing handle. The bladder is a reusable welded fabric enclosure that deploys under the arm and is readily collapsed and stowed for re-use. The inflation system utilizes a manually actuated 24 gram CO2 cartridge with beaded pull-handles for primary inflation, and an oral inflation tube for secondary inflation.

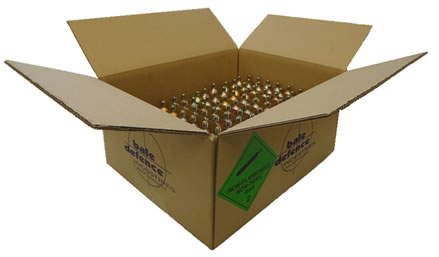

Carbon Dioxide (CO2) Cartridges
Bale stock a large range of CO2 Cartridges to service all of the life preservers that we supply as well as all of the other related consumables such as safety lock pins and actuator repair kits so that you can be sure that your life preserver units can be returned to service in the fastest possible time.
Carbon Dioxide (CO2) is a very versatile and relatively safe gas that is the most widely used in applications requiring inflation, propulsion, evaporative cooling and mechanical energy. The Carbon Dioxide inside the cartridges is in its liquid state, which provides the user with maximum expanded gas yields.
All cartridges supplied by us are manufactured in Japan to the highest quality standards, with 100% checks conducted by the manufacturer and inspections in accordance with MIL-STD-1916 conducted by us before the product is consigned for delivery.
Our cartridges are fitted with patented military safety caps which will, in the case of extreme internal pressure build-up, bleed at a controlled rate instead of releasing in a violent explosion which is the designed mode of failure typical inferior cartridges.
Each consignment is accompanied by a Certificate of Conformance.
PTFS
(Personal Tactical Flotation System)
Auto-TFSS
MSS
(Maritime Safety System)
MSS Heavy Duty Belt
DMFS
(Detachable Modular Flotation Sys.)
Carbon Dioxide (CO2) Disposable Cartridges
